主頁 > 產品中心 > > 15-24W Series > UME-15W series-B01 USB Type ( PSE/UL/CCC )

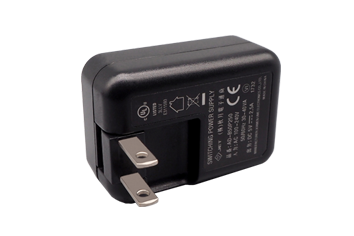

UME-15W series-B01 USB Type ( PSE/UL/CCC )

UME-15W series-B01 USB Type ( PSE/UL/CCC )

產品介紹


UME-B01 USB Type ( PSE/UL/CCC)、

☆100-240VAC Universal Input

☆Regulated Output with Low Ripple Noise

☆Private Label Marking Available

☆Modified and Custom Design Available

產品特點

Model No.

AC Input Rating

DC Output Rating

UME-B01

90V~264V

5.0V/2.0A    5.0V/3.0A    5.0V 1.8A 9.0V 1.8A 12.0V 1.35A

Green Mode

CEC, Energy Star Level Ⅵ, ErP Stage 2 & NRCan

Voltage

100-240 VAC

Line Frequency

50-60Hz  +/-10%

Current

0.4A Max.

Load Regulation

± 5% (Typical)

Ripple

1~2% Vp-p Max. for Output Voltage@ Full Load 100(Vp-p)(mV)

Transient Response

0.5mS for 50% Load Change Typical

Holdup Time

10mS @ Full Load

Protection

Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

DC Cord

22AWG / 20AWG / 18AWG

Safety Approvals

ForUK- CE / LPS

ForUSA- UL / cUL / FCC / PSE / LPS

ForChina-  CCC / LPS

ForEurope- CE / LPS

Electrical

Dielectric Withstand

3,000 VAC Primary-Secondary

Leakage Current

0.25mA @ 2 Pin

Efficiency

Energy Star Level Ⅵ, ErP Stage 2, GEMS & NRCan Certified

EMI Conduction&Radiation

Compliance to EN55022 Class B

Harmonic Current

Compliance to EN61000-3-2,3

EMS Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11

MTBF

300,000 Calculated Hours at 25°C, by Telcordia SR-332

Environmental

Operaturing Temperature

-20to +60°C

Storage Temperature

-30 to +85°C

Relative Humidity

Operating: 0 to 95% RH  Storage: 0 to 95% RH

Mechanical

Case Dimension

PSE/UL/CCC- 46.5 x 65 x 26 (mm)

Weight

60g

主要用途

power supply

產品系列

15-24W Series

相關下載

UME-B01-AD-A50P180
