主頁 > 產品中心 > > 60W-72W Series > UME-60W series-6005 Desktop Type ( PSE/UL/CCC/CB/CE/PSB )

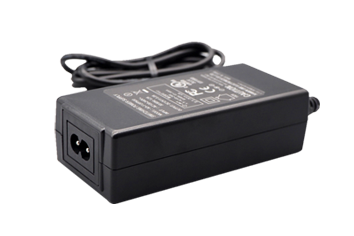

UME-60W series-6005 Desktop Type ( PSE/UL/CCC/CB/CE/PSB )

UME-60W series-6005 Desktop Type ( PSE/UL/CCC/CB/CE/PSB )

產品介紹

UME-6005 Desktop Type ( PSE/UL/CCC/CQC/CE/PSB)、60W Max 200VA Max

☆100-240VAC Universal Input

☆Regulated Output with Low Ripple Noise

☆Private Label Marking Available

☆Modified and Custom Design Available

產品特點

Model No.

AC Input Rating

DC Output Rating

UME-6005

90V~264V

12V/4.0A        12V/5.0A       24V/2.5A      19V/3.15A      16V/3.75A

Green Mode

CEC, Energy Star Level VI, ErP Stage 2 & NRCan

Voltage

100-240 VAC

Line Frequency

50-60Hz  +/-10%

Current

6.0A Max.

Load Regulation

± 5% (Typical)

Ripple

1~2% Vp-p Max. for Output Voltage@ Full Load 200(Vp-p)(mV)

Transient Response

0.5mS for 50% Load Change Typical

Holdup Time

10mS @ Full Load

Protection

Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

DC Cord

22AWG / 20AWG / 18AWG

Safety Approvals

ForUK- CE / LPS

ForUSA- UL / cUL / FCC / PSE / LPS

ForChina-  CCC / LPS

ForEurope- CE / LPS

Electrical

Dielectric Withstand

3,000 VAC Primary-Secondary

Leakage Current

0.25mA @ 2 Pin

Efficiency

Energy Star Level VI, ErP Stage 2, GEMS & NRCan Certified

EMI Conduction&Radiation

Compliance to EN55022 Class B

Harmonic Current

Compliance to EN61000-3-2,3

EMS Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11

MTBF

300,000 Calculated Hours at 25°C, by Telcordia SR-332

Environmental

Operaturing Temperature

0 to +40°C

Storage Temperature

-40 to +80°C

Relative Humidity

Operating: 10 to 90% RH  Storage: 10 to 90% RH

Mechanical

Case Dimension

PSE/UL/CCC- 110 x 51 x 33 (mm)

Weight

主要用途

power supply

產品系列

60W-72W Series
